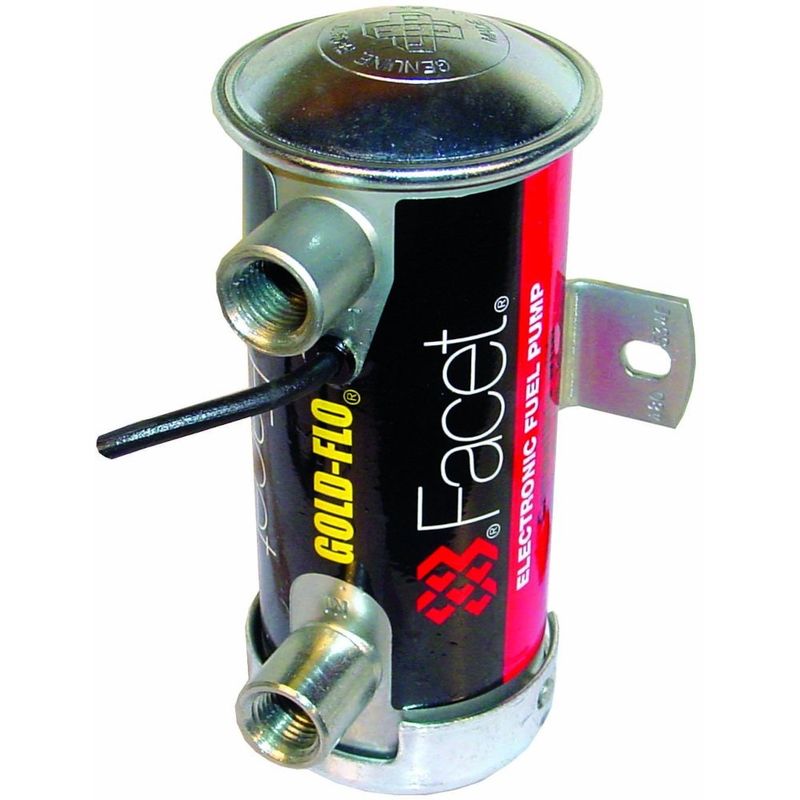

Bensinpumpe, +200HK, 140 l/t, 7.0 psi, RTW506 Facet Red Top
- Facet 480532 Red Top Cylindrical Fuel Pump - RTW506
- Specification: Motorsport Pump: 480532E
- Voltage: 12v Earth: Neg
- Pressure (Psi): 6.0-8.0 (0.40-0.56 Bar)
- Flow: US Gallons/Hr 40 (151 liter i timen)
- Dry Prime Height in Mtrs: 0.6
- Thread Size: 1/4 npt
- Operating Temperature: -40º to +180° F (all Models)
- Average Run Time or MTBF:- 6000 hrs
- Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
- Length:140mm
- Diameter: 54mm
- Weight:0.7kg
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight Cross Reference: Rolls Royce RH14187
